Leírás és Paraméterek
Processor:
- Compatible processor series: AMD Ryzen 3000 Series
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Supported processor sockets: Socket AM4
Graphics:
- Number of displays supported: 2
- On-board graphics card: No
- Parallel processing technology support: Not supported
Features:
- Audio output channels: 7.1 channels
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 10, Windows 11
- Motherboard form factor: ATX
- Motherboard chipset: AMD B550
- Product colour: Black
Memory:
- Memory slots type: DIMM
- Memory channels: Dual-channel
- Unbuffered memory: Yes
- Supported memory clock speeds: 2400, 2800, 2133, 4200, 3400, 3866, 3466, 3000, 3333, 4466, 3733, 4400, 4866, 3200, 2666, 4266, 4333, 4600, 2933, 3600, 4133, 4000, 4800
- Maximum internal memory: 128 GB
- Number of memory slots: 4
- Supported memory types: DDR4-SDRAM
- ECC сompatibility: ECC
Weight & dimensions:
- Depth: 244 mm
- Width: 305 mm
- Height: 75 mm
Network:
- Wi-Fi standards: 802.11g, 802.11b, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac)
- Ethernet interface type: 2.5 Gigabit Ethernet
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Bluetooth version: 5.2
- Wi-Fi: Yes
- Ethernet LAN: Yes
- Bluetooth: Yes
Internal I/O:
- USB 2.0 connectors: 2
- Thunderbolt headers: 1
- CPU fan connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- ATX Power connector (24-pin): Yes
- Front panel audio connector: Yes
- EPS power connector (8-pin): Yes
- TPM connector: Yes
- Number of COM connectors: 1
- Number of SATA III connectors: 6
- RGB LED pin header: Yes
- Number of chassis fan connectors: 3
Packaging content:
- Cables included: SATA
- Drivers included: Yes
Storage controllers:
- Supported storage drive interfaces: M.2, SATA
- Supported storage drive types: HDD & SSD
- RAID levels: 0, 10, 1
- RAID support: Yes

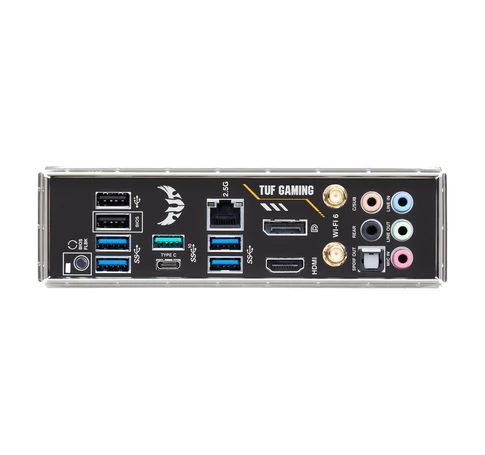

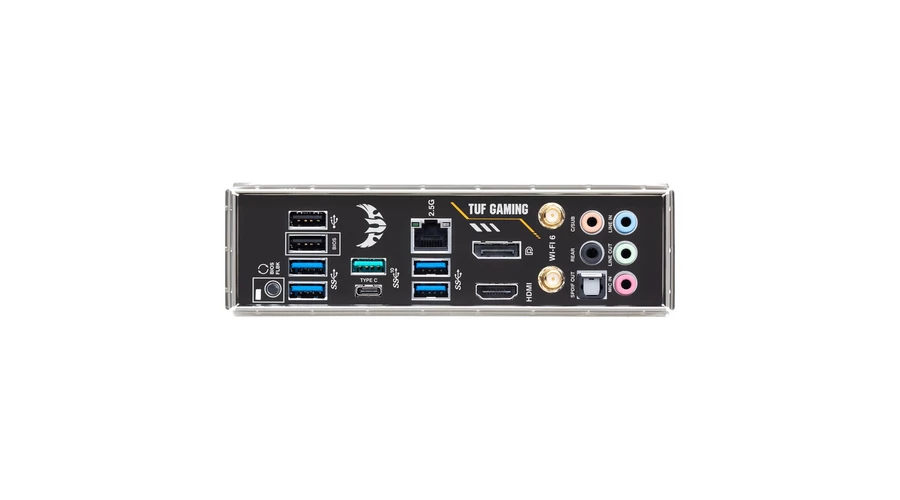

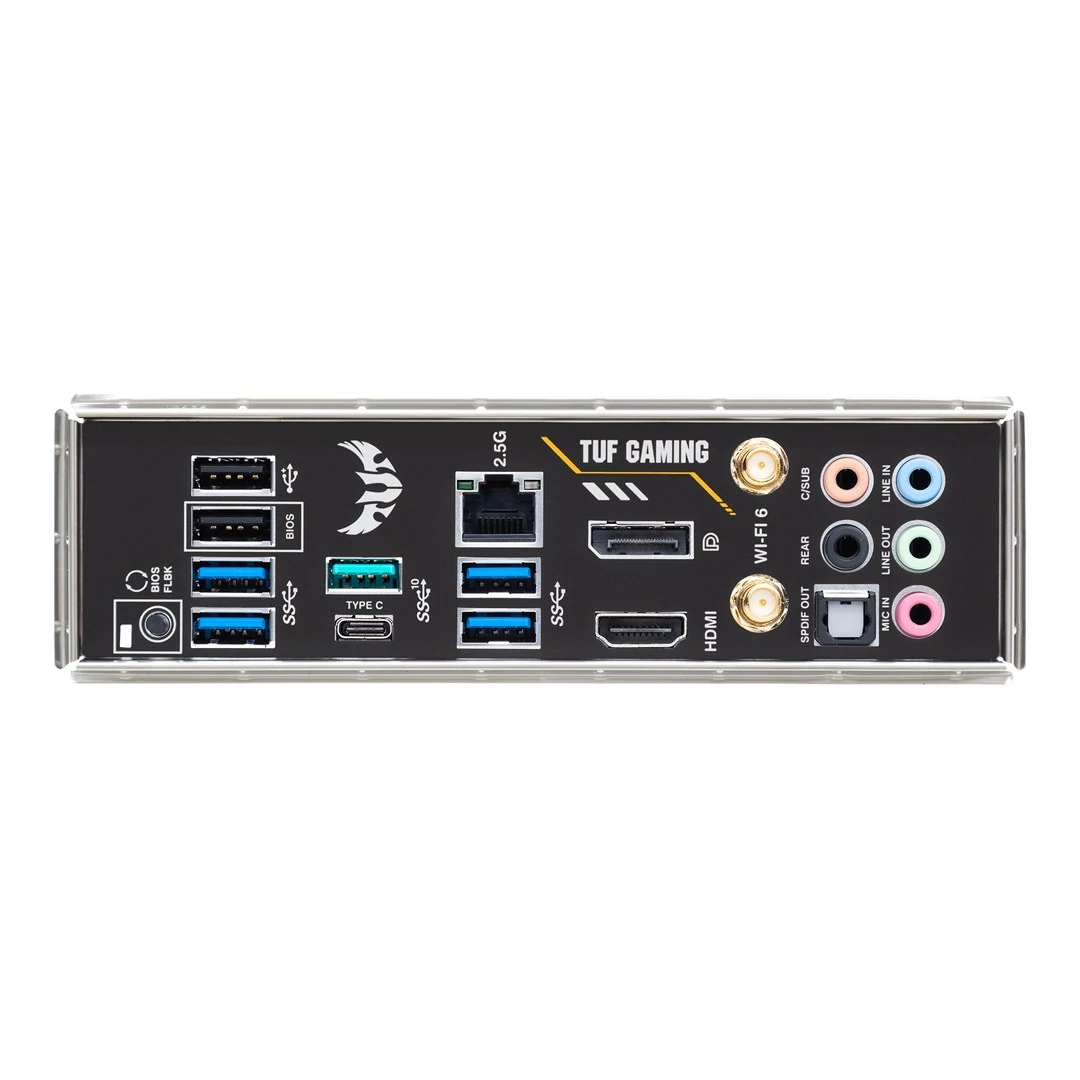

Rear panel I/O ports:
- HDMI ports quantity: 1
- USB connector type: USB Type-C, USB Type-A
- Microphone in: Yes
- Line-in: Yes
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- DisplayPorts quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- Headphone outputs: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- S/PDIF out port: Yes
Expansion slots:
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 2
- PCI Express x1 (Gen 3.x) slots: 3
