Leírás és Paraméterek
Design:
- Mounting type: Ceiling
- Product colour: White, Black
- IK code: IK10
- International Protection (IP) code: IP67
- Form factor: Turret
Power:
- Power source type: DC, PoE
- DC output voltage: 24
- Power consumption (typical): 13 W
- DC output current: 2.5 A
- Power consumption (max): 22 W
Operational conditions:
- Operating temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 0 - 95%
Management features:
- Web browser: Yes
- Web-based management: Yes
Weight & dimensions:
- Diameter: 19 cm
- Height: 332 mm
- Weight: 4.7 kg
Network:
- Ethernet LAN: Yes
- Wi-Fi: No
- Bluetooth: No
Performance:
- Connectivity technology: Wired
- PTZ modes: 5 Pattern
- Auto-tracking: Yes
- Placement supported: Indoor & outdoor

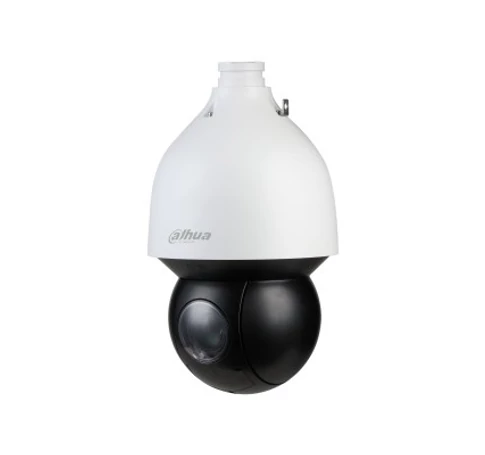

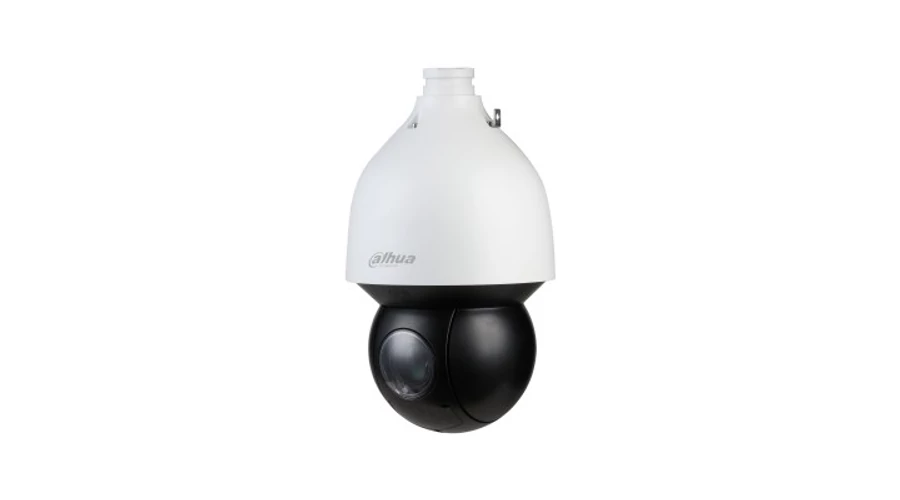

- Type: IP security camera
- PTZ control: Yes
Storage:
- Built-in HDD: No
- Compatible memory cards: MicroSD (TransFlash)
- Maximum memory card size: 512 GB
- ROM capacity: 4000 MB
- Internal memory: 1000 MB
Ports & interfaces:
- Headphone outputs: 1
- Ethernet LAN (RJ-45) ports: 1
Camera:
- Pan range: 0 - 360°
- White balance: Street lamp, Indoor, Manual, Sodium lamp, Auto, Outdoor, Natural
- Pan preset speed: 400 °/sec
- Minimum illumination: 0.0005 lx
- Tilt angle range: 15 - 90°
- Tilt preset speed: 300 °/sec
- Lens viewing angle, diagonal: 67.5–3.2
- Lens viewing angle, vertical: 31.9–1.3
- Lens viewing angle, horizontal: 58.5–2.8
- Pan manual speed: 0.1 - 300 °/sec
- Tilt manual speed: 0.1 - 200 °/sec
Image sensor:
- Sensor type: CMOS
- Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Video:
- Supported graphics resolutions: 704 x 480, 1280 x 720 (HD 720), 2560 x 1440, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 704 x 576, 352 x 288, 352 x 240
- Noise reduction: Yes
- Maximum resolution: 2560 x 1440 pixels
- Video compression formats: H.264H, H.265+, H.264+, H.265, H.264B, H.264
- Total megapixels: 4 MP
- Back Light Compensation (BLC): Yes
- Noise reduction technology: 2D noise reduction, 3D noise reduction
- Digital Wide Dynamic Range (DWDR): Yes
Night vision:
- LED type: IR
- Number of illumination LEDs: 4
- Night vision: Yes
- Night vision distance: 150 m
Lens system:
- Detect distance: 2124 m
- Number of lenses: 1
- Observe distance: 839 m
- Zoom capability: Yes
- Closest focusing distance: 0.8 m
- Identify distance: 212 m
- Focus: Manual
- Auto focus: Yes
- Recognize distance: 425 m
- Optical zoom: 32x
- Digital zoom: 16x
- Maximum aperture number: 4
- Minimum aperture number: 1.6
- Focal length range: 4.8–154
