Leírás és Paraméterek
Design:
- Housing material: Metal, Plastic
- Mounting type: M12
- International Protection (IP) code: IP67
- Form factor: Dome
- Product colour: White
Power:
- DC output voltage: 12
- Power consumption (max): 5.6 W
- Power consumption (Power over Ethernet (PoE)): 2.3 W
- Power source type: DC, PoE
Operational conditions:
- Operating relative humidity (H-H): 0 - 95%
- Storage temperature (T-T): -40 - 60 °C
- Operating temperature (T-T): -40 - 60 °C
Management features:
- Web browser: Yes
- Web-based management: Yes
Weight & dimensions:
- Height: 100.9 mm
- Weight: 330 g
Network:
- Number of users: 6 user(s)
- Wi-Fi: No
- Ethernet interface type: Fast Ethernet
- Networking standards: IEEE 802.3af
- Bluetooth: No
Performance:
- Placement supported: External / Internal
- Signal-to-Noise Ratio (SNR): 56 dB
- Connectivity technology: Wired

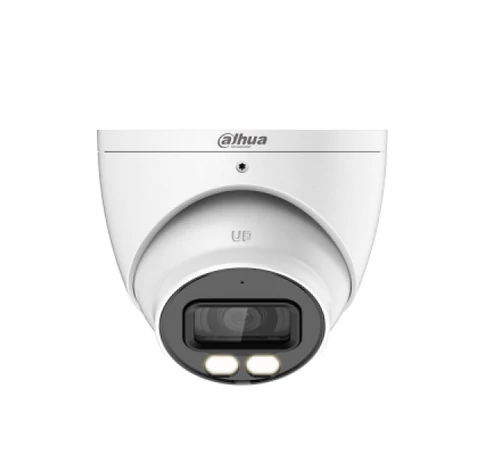

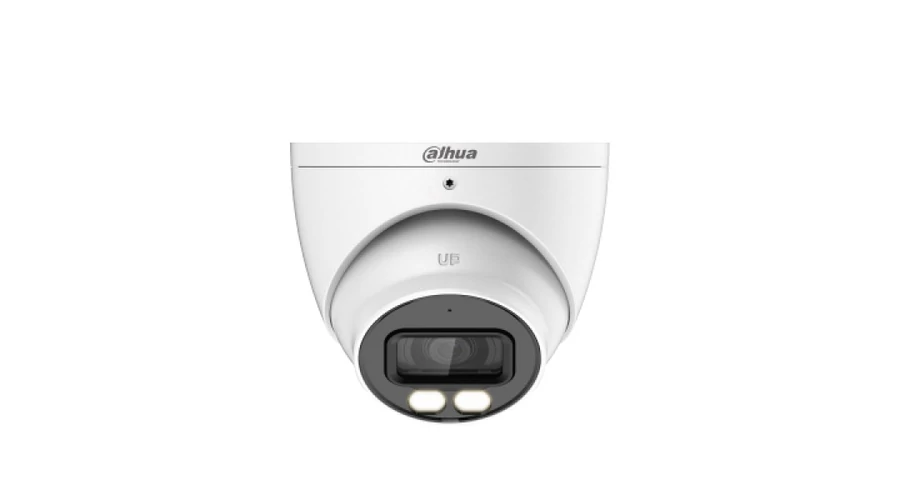

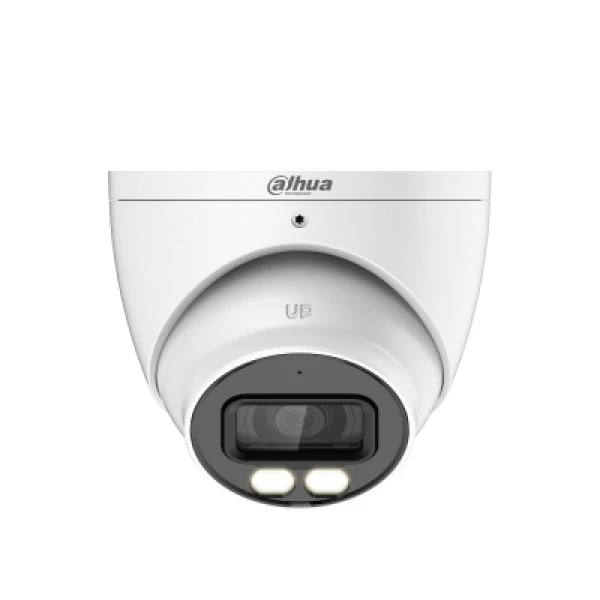

- Type: IP security camera
Audio:
- Audio formats supported: G.711Mu, G.711a, PCM, G.726
- Built-in microphone: Yes
Storage:
- ROM capacity: 128 MB
- Built-in HDD: No
- Internal memory: 128 MB
Camera:
- Lens viewing angle, vertical: 55°
- White balance: Regional custom, Manual, Outdoor, Auto, Natural, Street lamp
- Lens viewing angle, diagonal: 124°
- Lens viewing angle, horizontal: 104°
- Adjustment shutter speed: Auto/Manual
- Pan range: 0 - 360°
- Camera shutter speed: 1/3 - 1/100000 s
- Tilt angle range: 0 - 78°
Image sensor:
- Sensor type: CMOS
- Number of sensors: 1
- Progressive scan: Yes
Video:
- Gain control type: Auto/Manual
- Video compression formats: H.265, M-JPEG, H.264H, H.264, H.264B
- Mirror function: Yes
- Bit rate: H.264: 32kbps ~ 4096kbps H.265: 12kbps ~ 4096kbps
- Noise reduction: Yes
- Frame rate: 30 fps
- Video streaming: Yes
- Total megapixels: 2 MP
- Region of Interest (ROI) encoding: Yes
- Noise reduction technology: 3D NR
- Supported graphics resolutions: 352 x 288, 352 x 240, 1280 x 720, 640 x 480 (VGA), 704 x 576, 1280 x 960, 704 x 480, 1920 x 1080
- Maximum resolution: 1920 x 1080 pixels
Night vision:
- Night vision: Yes
- LED type: IR / White light LED
- Number of illumination LEDs: 2
- Night vision distance: 30 m
Lens system:
- Number of lenses: 1
- Closest focusing distance: 1.5 m
- Maximum aperture number: 1.6
- Focal length range: 2.8 mm
- Lens type: Fixed focal length lens
