Leírás és Paraméterek
Design:
- Mounting type: Ceiling
- Product colour: White
- International Protection (IP) code: IP67
- Housing material: Metal, Plastic
- Degree of protection IK: IK10
- Form factor: Tube/dome
Power:
- Power consumption (Power over Ethernet (PoE)): 6.5 W
- Power consumption (max): 5.3 W
- DC output voltage: 12
- Power source type: DC, PoE
Operational conditions:
- Operating relative humidity (H-H): 0 - 95%
- Operating temperature (T-T): -40 - 60 °C
- Storage temperature (T-T): -40 - 60 °C
Management features:
- Web browser: Yes
- Web-based management: Yes
Weight & dimensions:
- Weight: 590 g
- Width: 70.5 mm
- Height: 66.4 mm
- Depth: 192.7 mm
Network:
- Number of users: 20 user(s)
- Ethernet interface type: Fast Ethernet
- Networking standards: IEEE 802.3af
- Quality of Service (QoS) support: Yes
- Bluetooth: No
- Wi-Fi: No
Performance:
- Placement supported: External / Internal
- Signal-to-Noise Ratio (SNR): 56 dB

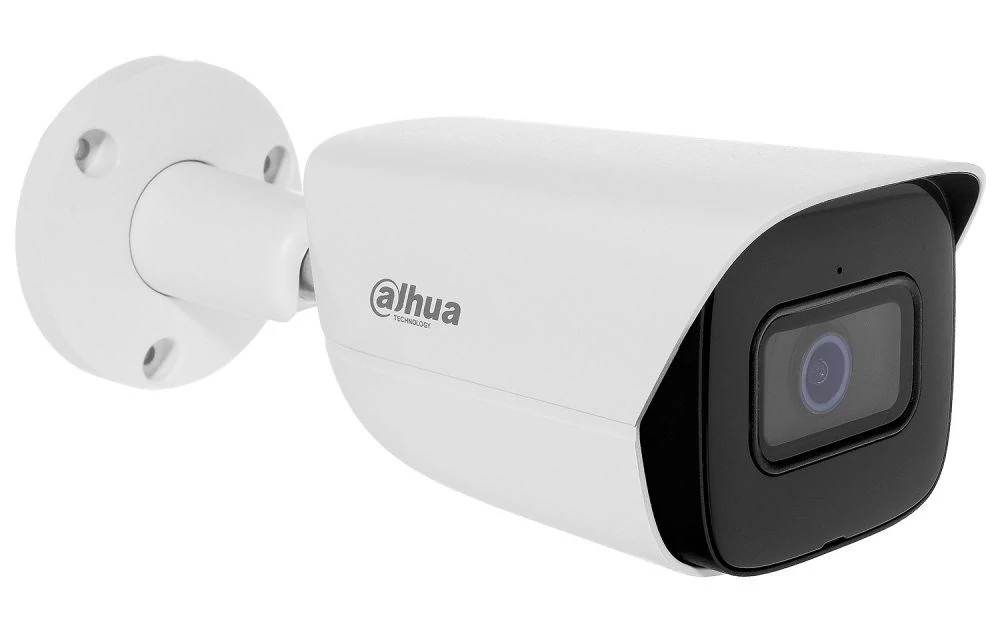

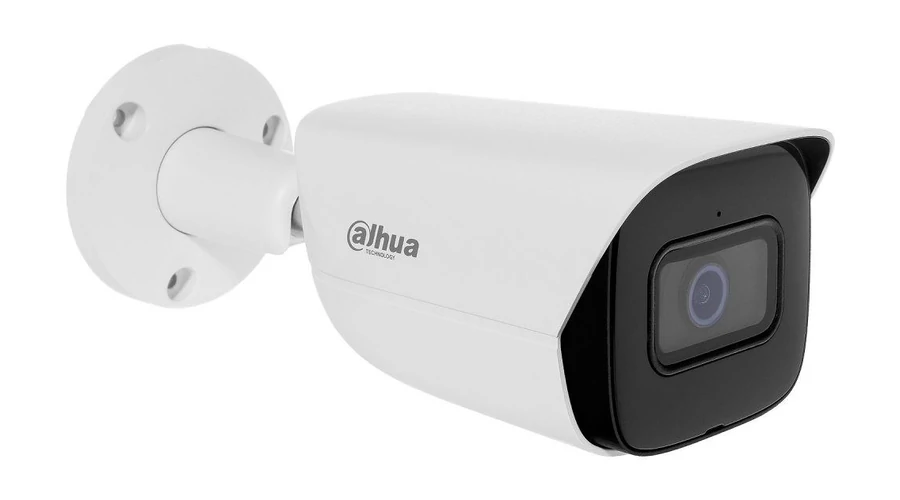

- Type: IP security camera
- Connectivity technology: Wired
- Wide Dynamic Range (WDR): 120 dB
Audio:
- Audio formats supported: G.711Mu, G.726, G.723, G.711a, PCM
- Built-in microphone: Yes
Storage:
- ROM capacity: 128 MB
- Built-in HDD: No
- Internal memory: 512 MB
Camera:
- Adjustment shutter speed: Auto/Manual
- Camera shutter speed: 1/3 - 1/100000 s
- White balance: Outdoor, Manual, Street lamp, Natural, Auto
- Pan range: 0 - 360°
- Tilt angle range: 0 - 90°
- Lens viewing angle, vertical: 58°
- Minimum illumination: 0.005 lx
- Lens viewing angle, diagonal: 132°
- Lens viewing angle, horizontal: 111°
Image sensor:
- Number of sensors: 1
- Sensor type: CMOS
- Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
- Progressive scan: Yes
Video:
- Noise reduction technology: 3D noise reduction
- Video streaming: Yes
- Video compression formats: M-JPEG, H.264, H.265, H.264B, H.264H
- Region of Interest (ROI) encoding: Yes
- Gain control type: Auto/Manual
- Supported graphics resolutions: 704 x 576, 1280 x 960, 2880 x 1620, 2960 x 1668, 352 x 240, 2304 x 1296, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 640 x 480 (VGA), 352 x 288, 704 x 480, 2688 x 1520, 2560 x 1440, 1280 x 720 (HD 720)
- Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Total megapixels: 5 MP
- Back Light Compensation (BLC): Yes
- Noise reduction: Yes
- Highlight Compensation (HLC): Yes
- Maximum resolution: 2960 x 1668 pixels
- Bit rate: 3 kbps–8192 kbps, H.265: 3 kbps–8192 kbps
- Mirror function: Yes
- Frame rate: 30 fps
Night vision:
- Night vision: Yes
- LED type: IR
- Night vision distance: 50 m
- Number of illumination LEDs: 1
Lens system:
- Closest focusing distance: 1.1 m
- Number of lenses: 1
- Lens type: Fixed focal length lens
- Maximum aperture number: 1.4
- Focal length range: 2.8 mm
