Leírás és Paraméterek
Design:
- Mounting type: Wall/ceiling
- Form factor: Bullet
- International Protection (IP) code: IP67
- Product colour: White
- Housing material: Metal
Power:
- Power consumption (Power over Ethernet (PoE)): 7.5 W
- DC output voltage: 12, 48
- Power source type: DC, PoE
- Power consumption (max): 6.1 W
- Power consumption (typical): 3.6 W
Operational conditions:
- Operating relative humidity (H-H): 0 - 95%
- Storage temperature (T-T): -40 - 60 °C
- Operating temperature (T-T): -40 - 60 °C
Management features:
- Web browser: Yes
- Web-based management: Yes
Weight & dimensions:
- Height: 66.4 mm
- Weight: 590 g
- Width: 70.5 mm
- Depth: 192.7 mm
Network:
- 4G LTE: No
- Bluetooth: No
- Wi-Fi: No
- Ethernet interface type: 10 Megabit Ethernet, 100 Megabit Ethernet
- Networking standards: IEEE 802.1x, IEEE 802.3af
Performance:
- Signal-to-Noise Ratio (SNR): 56 dB
- Placement supported: External / Internal
- Connectivity technology: Wired
- Wide Dynamic Range (WDR): 120 dB

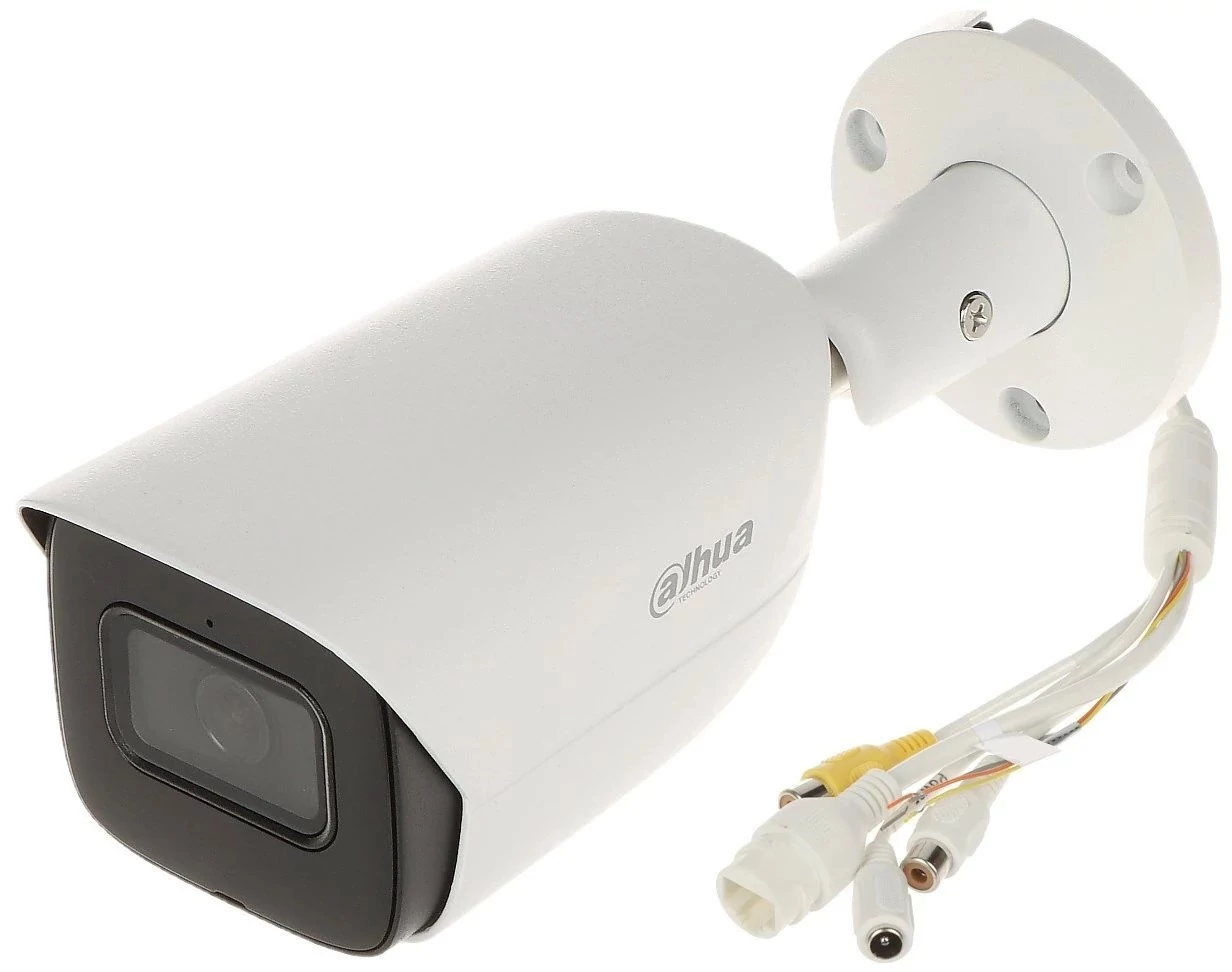

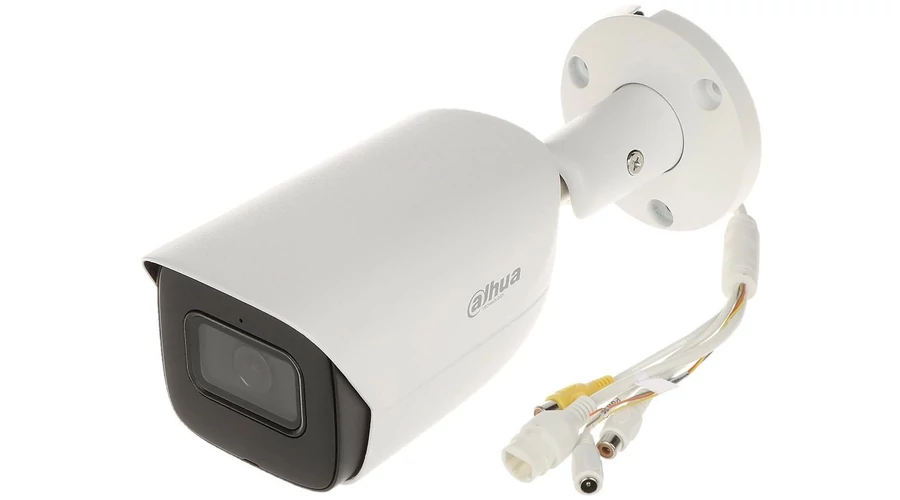

- Type: IP security camera
Audio:
- Two-way talk: Yes
- Audio codecs: G.711a / G.711Mu / G.723 / G.726 / PCM
- Built-in loudspeaker: Yes
- Built-in microphone: Yes
Storage:
- ROM capacity: 128 MB
- RAM capacity: 1024 MB
Ports & interfaces:
- Audio RCA outputs: 1
- Maximum memory card size: 256 GB
- RCA input: 1
- Number of memory card slots: 1
- Alarm input/output: No
- Compatible memory cards: MicroSDHC, MicroSD (TransFlash), MicroSDXC
- Ethernet LAN (RJ-45) ports: 1
Camera:
- Horizontal rotation angle: 0 - 360°
- Lens viewing angle, vertical: 57°
- Motion detection : Yes
- People detection : Yes
- Vertical rotation angle: 0 - 90°
- Viewing angle, diagonal: 134°
- Lens viewing angle, horizontal: 110°
- Adjustment shutter speed: Auto/Manual
- Camera shutter speed: 1/3 - 1/100000 s
- Minimum illumination: 0.003 lx
Image sensor:
- Progressive scan: Yes
- Sensor type: HD CMOS
- Number of sensors: 1
- Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Video:
- Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Noise reduction technology: 3D noise reduction
- Video compression formats: H.264B, H.264H, H.265, H.264, H.265+, H.264+, M-JPEG
- Video streaming: Yes
- Maximum resolution: 3840 x 2160 pixels
- Bit rate: 3 kbps - 16384 kbps
- Supported graphics resolutions: 352 x 288, 704 x 480, 2688 x 1520, 352 x 240, 2304 x 1296, 704 x 576, 1280 x 960, 2560 x 1440, 1280 x 720, 640 x 480 (VGA), 3072 x 2048, 3840 x 2160, 2592 x 1944, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 3072 x 1728
- Frame rate: 25 / 30 fps
- Total megapixels: 8 MP
Night vision:
- Night vision: Yes
- LED type: IR
- Night vision distance: 30 m
- Number of illumination LEDs: 1
Lens system:
- Focal length range: 2.8 mm
- Detect distance (wide): 89.2 m
- Recognize distance (wide): 17.8 m
- Observe distance (wide): 35.7 m
- Maximum aperture number: 1.6
- Closest focusing distance: 1.9 m
- Number of lenses: 1
- Identify distance (wide): 8.9 m
- Lens type: Fixed focal length lens
- Aperture type: Permanent
