Technical details:
- Product colour: Copper, Black
- International Protection (IP) code: IP65
- Connecting thread: 1"

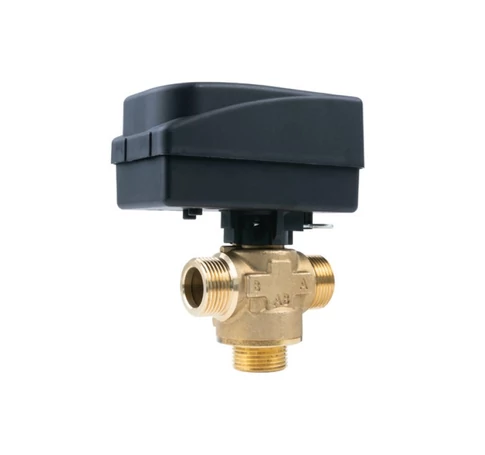

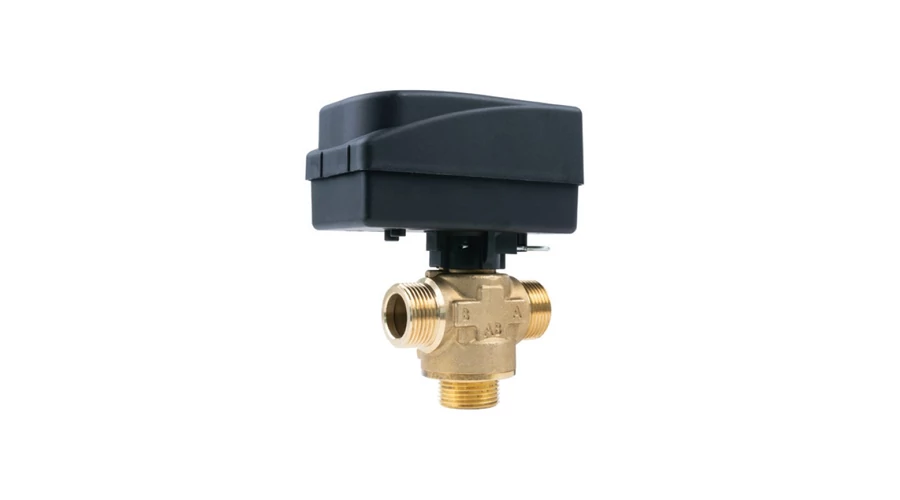

- Product type: Three-way valve
- Material: Brass, PPS
- Refrigerant temperature : 2 - 110°C
- Protection class: II
- Torque (max): 4 N⋅m
- Pressure rating: 1.6 MPa
- Connections: Male thread
- Angle of rotation: 90°
- Time from override to open position : 15 s
- Factors : Cold and hot water , Glycol solution (up to 50% concentration)
- Pressure differential: 0.6 Mpa
- Time to switch to closed position : 15 s
Power:
- Input voltage: 100 - 240 V
- Power consumption (typical): 2.5 W
- Frequency: 50 / 60 Hz
- Rated power: 6,5 W
