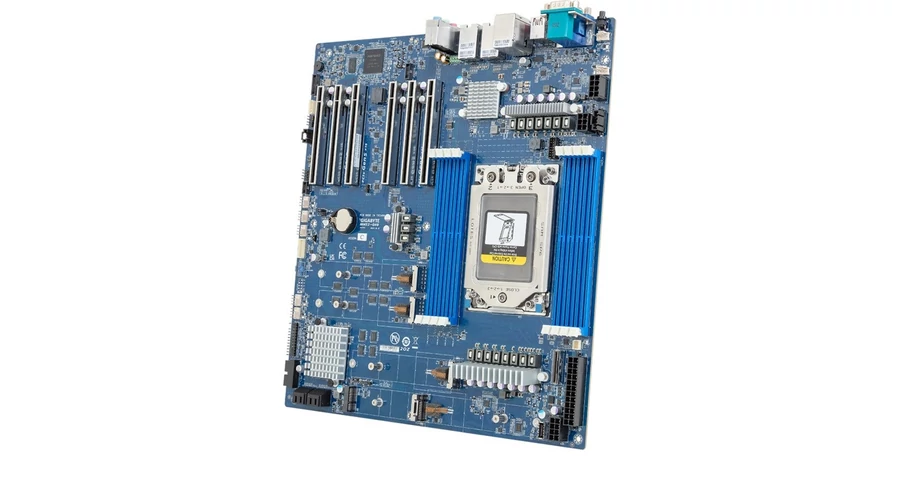

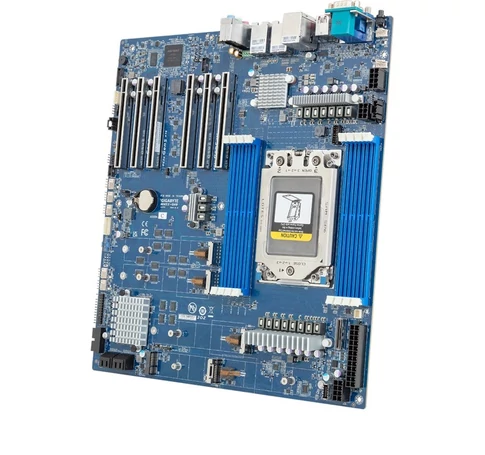

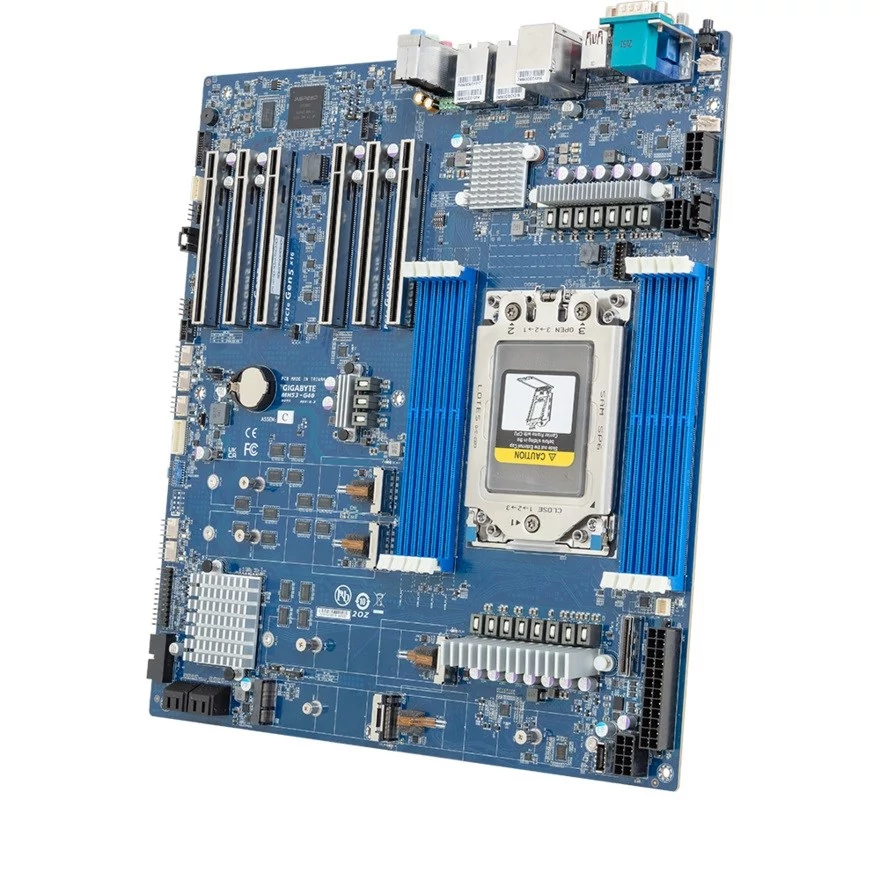

Leírás és Paraméterek
Processor:
- Processor manufacturer: AMD
- Compatible processor series: AMD Ryzen Threadripper PRO 7000 WX-Series
- Maximum number of SMP processors: 1
- Processor socket: Socket sTR5
- Supported processor sockets: Socket sTR5
Features:
- Motherboard form factor: EATX
- Motherboard chipset: AMD WRX90
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Component for: Server/workstation
- Motherboard chipset family: AMD
- Product colour: Blue
Memory:
- Memory slots type: DIMM
- Supported memory types: DDR5 ECC RDIMM
- Supported memory clock speeds: 5200
- Memory channels: Octa-channel
- Number of memory slots: 8
- ECC сompatibility: ECC
Weight & dimensions:
- Width: 304.8 mm
- Depth: 330.2 mm
Network:
- Ethernet interface type: 10 Gigabit Ethernet
- Ethernet LAN: Yes
- Wi-Fi: No
Internal I/O:
- ATX Power connector (24-pin): Yes
- Number of SATA III connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- CPU fan connector: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports quantity: 1
- Number of MCIO connectors: 1
- 12V power connector: Yes
- Number of chassis fan connectors: 6
Packaging data:
- Package width: 409 mm
- Package height: 78 mm
- Package depth: 355 mm
Storage controllers:
- RAID levels: 0, 10, 1, 5
- Supported storage drive types: HDD & SSD
- RAID support: Yes
- Supported storage drive interfaces: M.2, SATA III
Rear panel I/O ports:
- Ethernet LAN (RJ-45) ports: 2
- Number of audio jack connectors: 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
- COM ports quantity: 1
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- Port Management LAN: Yes, 1
