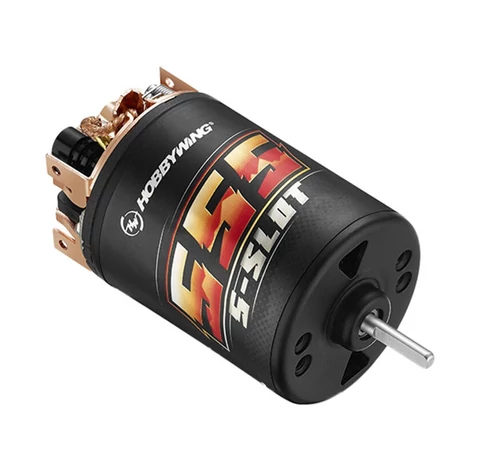

Hobbywing QuicRun Brushed 555 11T motor
The Hobbywing QuicRun Brushed 555 11T brush motor is a powerful drive unit designed for modeling applications requiring high power and precise control. It operates at a rated voltage of 7.4V and a maximum voltage of 10V, providing flexibility in the choice of power source. It has 11 windings and five poles, which guarantees high efficiency and reliable operation. The motor reaches 17,000 rpm at rated voltage, which translates into dynamic performance. It requires an ESC controller with a current range of 40-60A, which allows safe and efficient power management. Compact dimensions (36mm in diameter, 58.5mm in case length) and a shaft of 3.175mm in diameter and 16.5mm in length make it easy to install in a variety of RC models.
| Manufacturer | Hobbywing |
|---|---|
| Model | HW30404315 |
| Rated voltage | 7.4V |
| Maximum voltage | 10V |
| Number of coils | 11 |
| Number of poles | 5 |
| Revolutions per minute at rated voltage | 17000 |
| ESC controller required | 40-60A |
| Diameter | 36 mm |
| Housing length | 58.5 mm |
| Shaft diameter | 3.175 mm |
| Free shaft length | 16.5 mm |
| Weight | 193 g |
