Leírás és Paraméterek
Features:
- Heat protection: Y

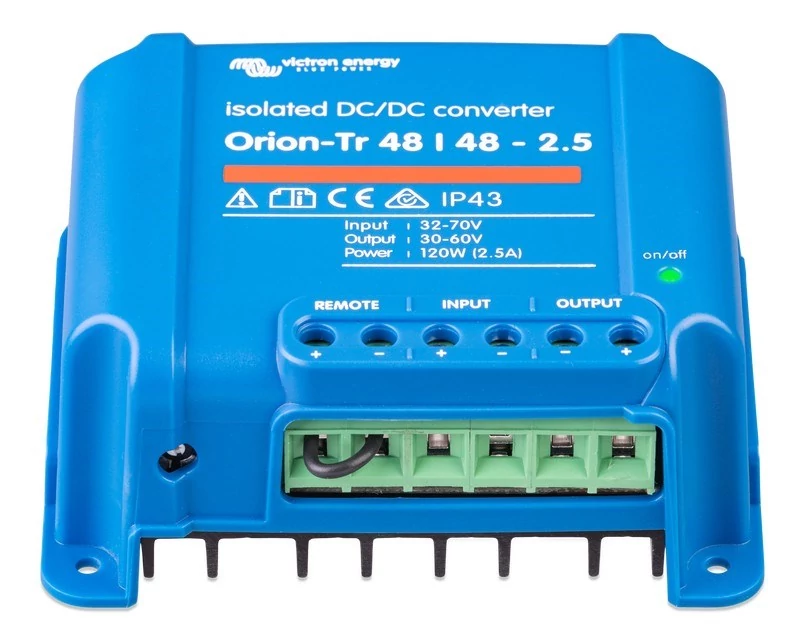

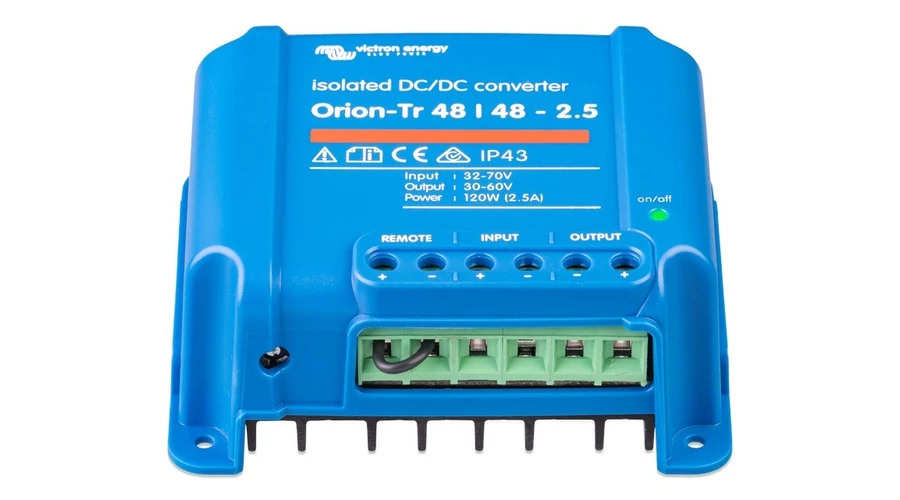

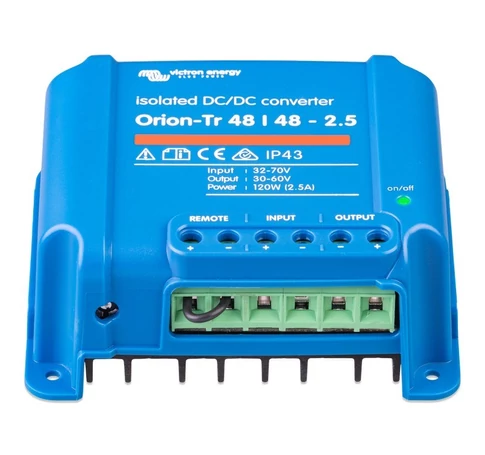

- Product type: Converter
- Brand compatibility: Victron Energy
- Short circuit protection: Yes
- Suitable for: Photovoltaic system
- Remote on/off switch: Yes
- Easy to install: Yes
- Parallel connection possible: Unlimited number of devices
Design:
- Conductor cross section: 6 mm²
- International Protection (IP) code: IP43
- Operating temperature (T-T): -20 - 55 °C
- Product colour: Blue
- Built-in display: No
Power:
- Output current: 2.5 A
- Output voltage: 48,2 V
- Input voltage range: 32 - 70 V
- DC battery voltage: 48 V
- Output power at 40°C : 85 W
- Short-circuit current: 17 A
- Output power at 25°C: 120 W
- Efficiency: 89%
Weight & dimensions:
- Height: 47 mm
- Width: 113 mm
- Depth: 100 mm
- Weight: 420 g
