Leírás és Paraméterek
Processor:
- Compatible processor series: AMD Ryzen 2000 Series, AMD Ryzen 3000 Series, AMD Athlon
- Processor socket: Socket AM4
- Processor manufacturer: AMD
Graphics:
- DirectX version: 12.0
- HDCP: Yes
- Maximum resolution: 4096 x 2160 pixels
- Parallel processing technology support: Not supported
- Graphics card family: AMD
- On-board graphics card: Yes
Features:
- Audio chip: Realtek ALC887
- Motherboard chipset: AMD B450
- Motherboard chipset family: AMD
- Audio output channels: 7.1 channels
- Motherboard form factor: micro ATX
- Windows operating systems supported: Windows 10 Pro x64, Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 x64, Windows 10 Home x64
Memory:
- Unbuffered memory: Yes
- Supported memory clock speeds: 3200, 2133, 2667, 2933, 2400
- ECC сompatibility: ECC & Non-ECC
- Maximum internal memory: 32 GB
- Memory channels: Dual-channel
- Memory slots type: DIMM
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
Weight & dimensions:
- Height: 70 mm
- Depth: 201 mm
- Width: 230 mm
Network:
- LAN controller: Realtek RTL8111H
- Wake-on-LAN ready: Yes
- Wi-Fi: No
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN: Yes
Internal I/O:
- Front panel audio connector: Yes
- Number of chassis fan connectors: 2
- Number of SATA III connectors: 4
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- CPU fan connector: Yes
- Chassis intrusion connector: Yes
- TPM connector: Yes
- Number of COM connectors: 1
- 12V power connector: Yes
BIOS:
- BIOS type: UEFI AMI
- Clear CMOS jumper: Yes
Packaging content:
- Cables included: SATA
- Drivers included: Yes
Storage controllers:
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
- RAID levels: 1, 0, 10

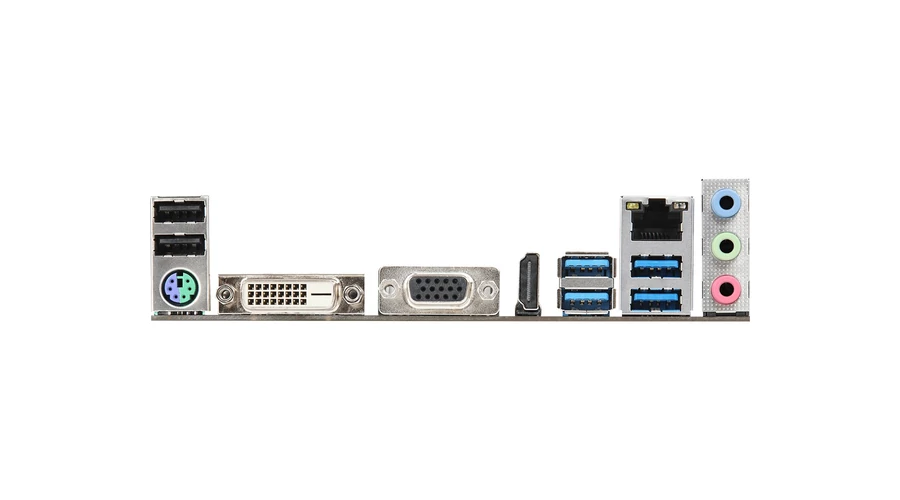

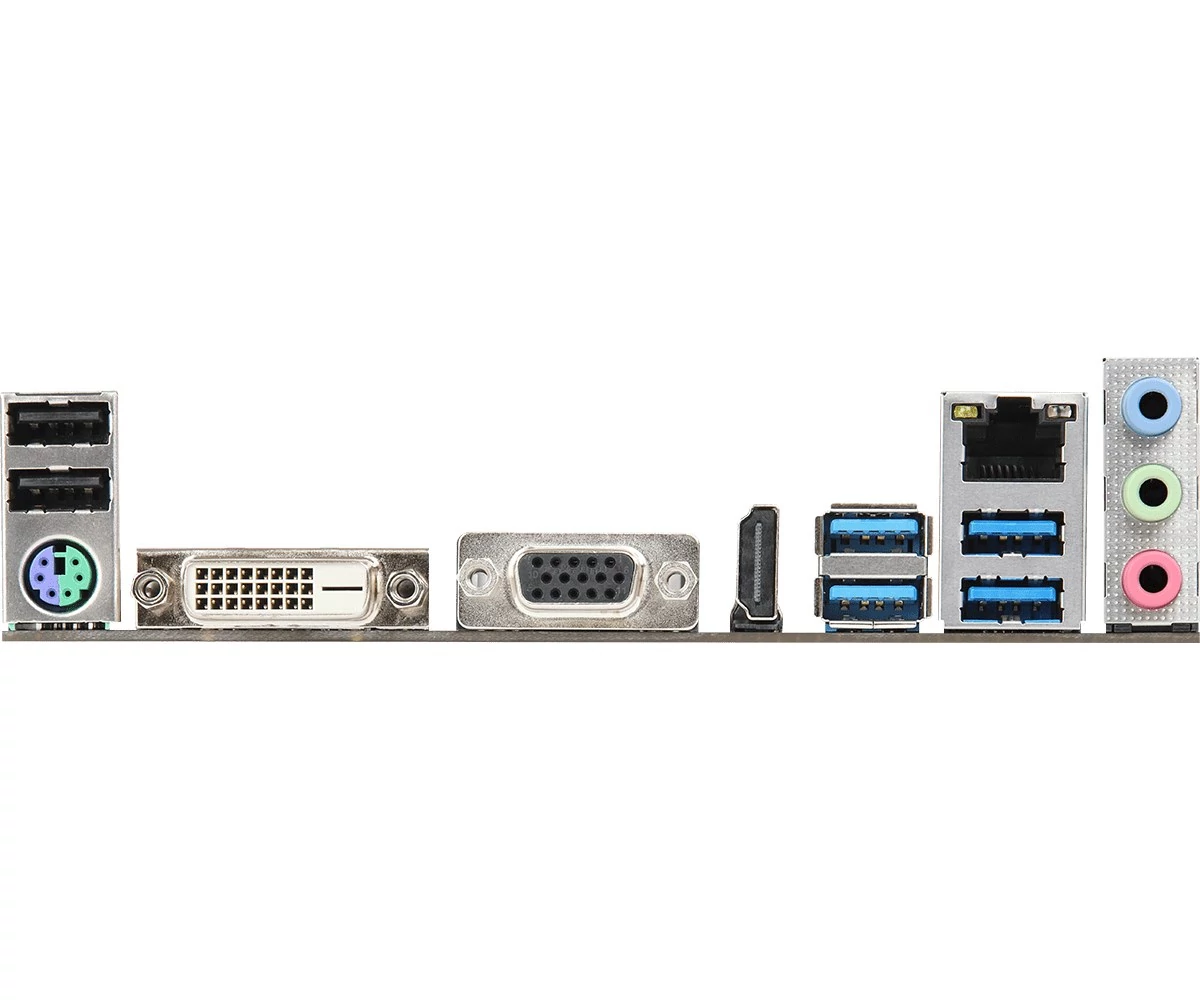

Rear panel I/O ports:
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Headphone outputs: 1
- DVI-D ports quantity: 1
- Microphone in: Yes
- HDMI ports quantity: 1
- PS/2 ports quantity: 1
- VGA (D-Sub) ports quantity: 1
Expansion slots:
- PCI Express x16 (Gen 3.x) slots: 3
- PCI Express x1 (Gen 2.x) slots: 1
Other features:
- Weight: 465 g
- Quick installation guide: Yes
- Utilities included: Yes
