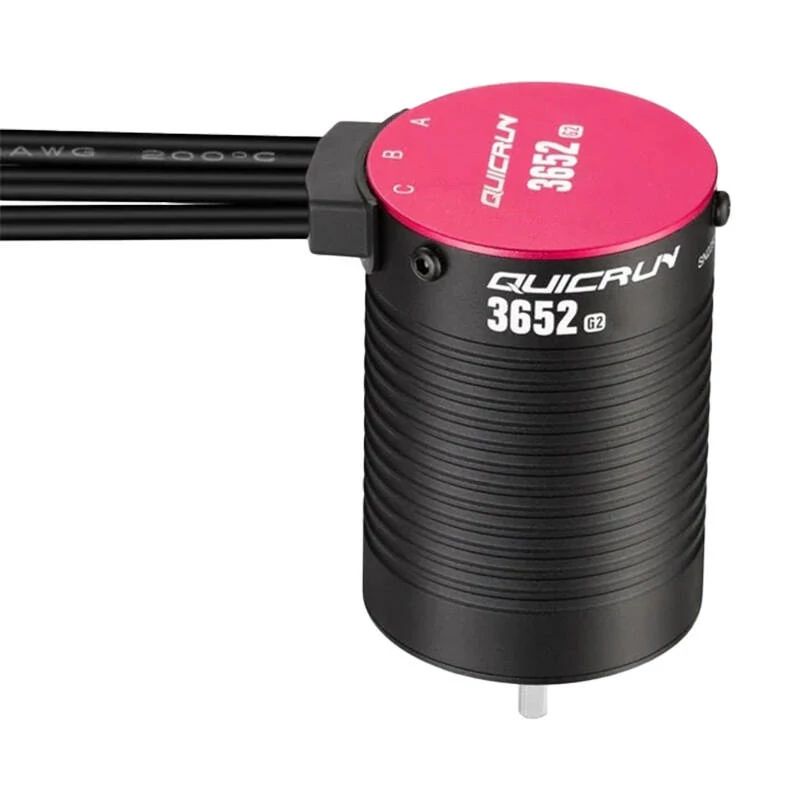

QuicRun 3652SL G2 3250KV - black
The QuicRun 3652SL G2 3250KV brushless motor is a high-performance drive unit designed for RC models that require high power and precise control. The AC-type motor features a RPM per volt ratio of 3250 RPM/V, which allows it to reach high speeds with power voltage. It is compatible with Li-Po batteries (2-3 cells), providing flexibility in the choice of power source. An idling current of 4 A contributes to the motor's energy efficiency. The motor has four poles, which translates into smoother and more precise operation. Its compact dimensions (36 mm in diameter, 52 mm in case length) and a shaft with a diameter of 3.175 mm and a length of 15 mm make it easy to install in various RC models. The motor weighs 223 g, providing stability and enough weight for effective operation. Thanks to the absence of a Hall sensor and a fixed ignition advance angle of 0°, the motor's design is simplified, increasing reliability and facilitating maintenance.
| Manufacturer | Hobbywing |
|---|---|
| Model | HW30404400 |
| Motor type | AC |
| RPM per volt | 3250 RPM/V |
| Compatibility with rechargeable batteries | Li-Po (2-3 cells) |
| Idling current | 4 A |
| Number of poles | 4 |
| Diameter | 36 mm |
| Housing length | 52 mm |
| Shaft diameter | 3.175 mm |
| Free shaft length | 15 mm |
| Weight | 223 g |
| Ignition advance angle | 0° |
| Hall sensor | No |
